Linear actuators with stepper motor

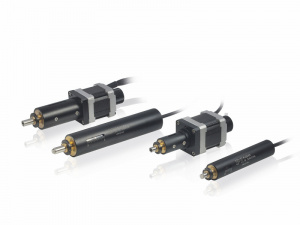

M-228/M-229 - Compact high precision linear actuator
- Positioning range 10 mm and 25 mm
- 0.36 nm resolution for gearhead version
- Load capacity up to 80 N
- Positioning speed up to 4 mm/s
- One-way repeatability ±2 µm
- Affordable

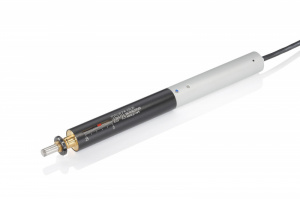

M-230 - High resolution linear actuator
- Positioning range 10 and 25 mm
- Non-rotating tip for uniform motion to prevent transmission of chatter and wear at the point of contact
- Low vibration stepper motor with gear head
- Unidirectional repeatability ± 0.1 µm
- Positioning speed up to 1.2 mm/s
- DC motor version also available

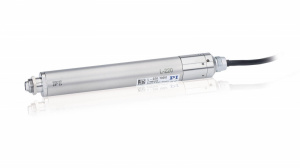

L-220 - High precision linear actuator suitable for high cycle rates
- Positioning range from 13 to 77 mm
- Unidirectional repeatability ± 0.5 µm
- Vacuum version also available
- Positioning speed 0.8 mm/s
- Max. pulling/pushing force 125 N
- DC motor version also available

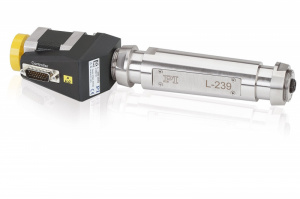

L-239 - High precision linear actuator for high loads
- High pulling/pushing force up to 300 N
- Positioning range 52 mm
- High speed up to 25 mm/s
- High dynamics and positioning accuracy - minimum incremental movement of 0.1 µm
- Unidirectional repeatability ± 0.1 µm
- DC motor version also available
