Pulsed nanosecond diode-pumped (active Q-switched) Nd:YAG lasers with output at wavelengths of 1064, 532 and 355, combining high pulse energy and high repetition rate up to 200 Hz.

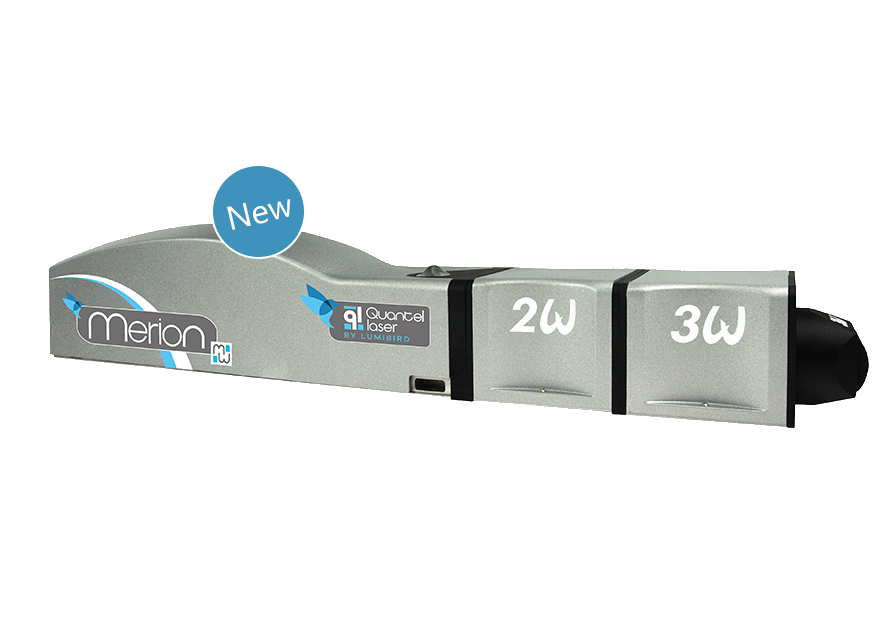

The Merion MW series lasers are high power active Q-switched, diode-pumped pulsed nanosecond lasers with pulse energies up to 650mJ. The Merion series lasers combine high pulse energy and high repetition rate.
The basic oscillator generates a wavelength of 1064 nm. By connecting a higher harmonic frequency module, the output wavelength can be easily changed to 532nm and 355nm..
Key features
- Base wavelength 1064nm, harmonic generators for 532nm and 355nm
- Energy in pulse up to 650 mJ at 100Hz
- Easy change of output wavelength (automatic phase matching)
- Lifetime of pumping diodes 2 billion pulses
- Extendable to single longitudinal mode (SLM) output
- Repeat frequency up to 200Hz
- Compact and robust design
