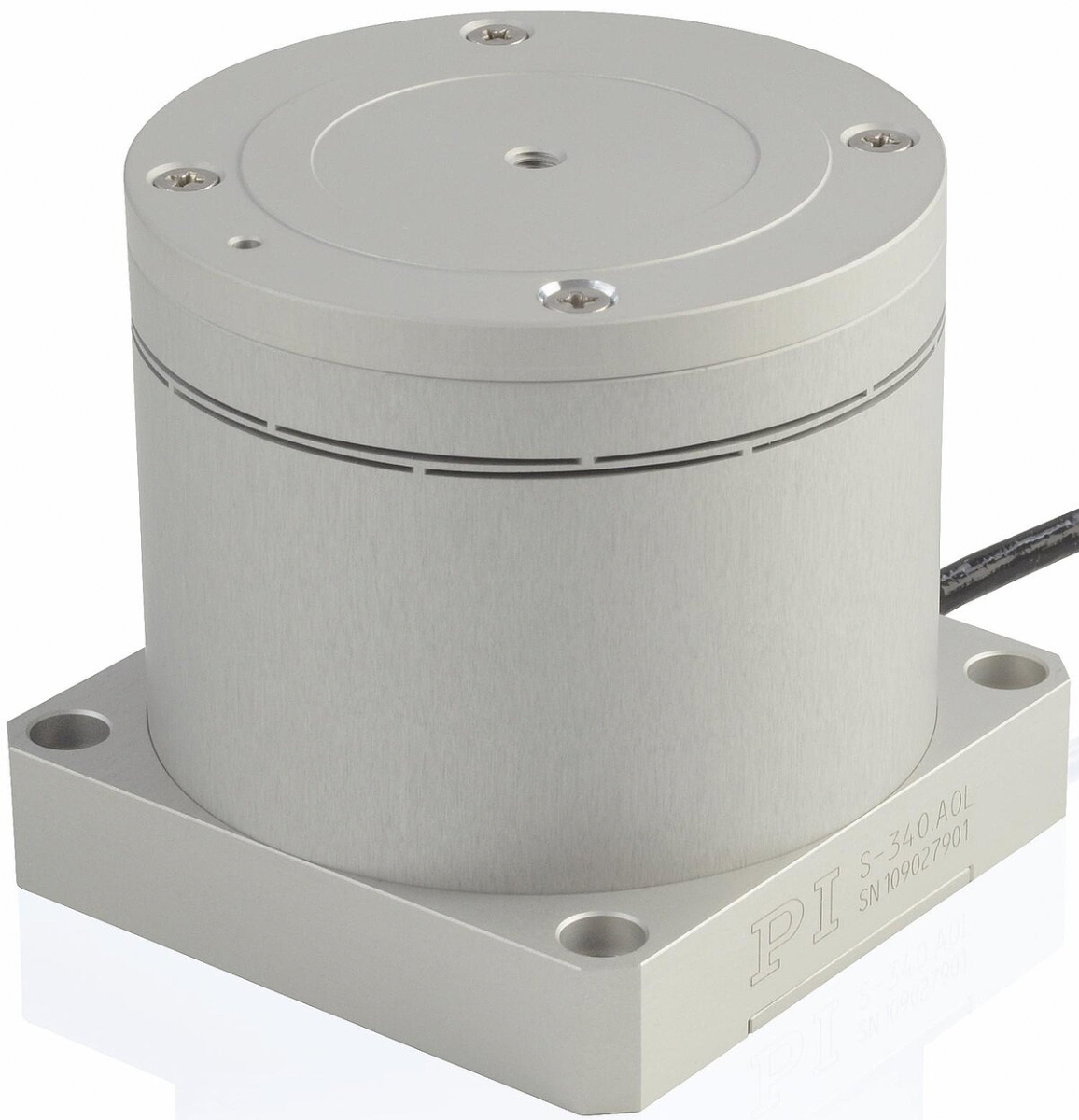

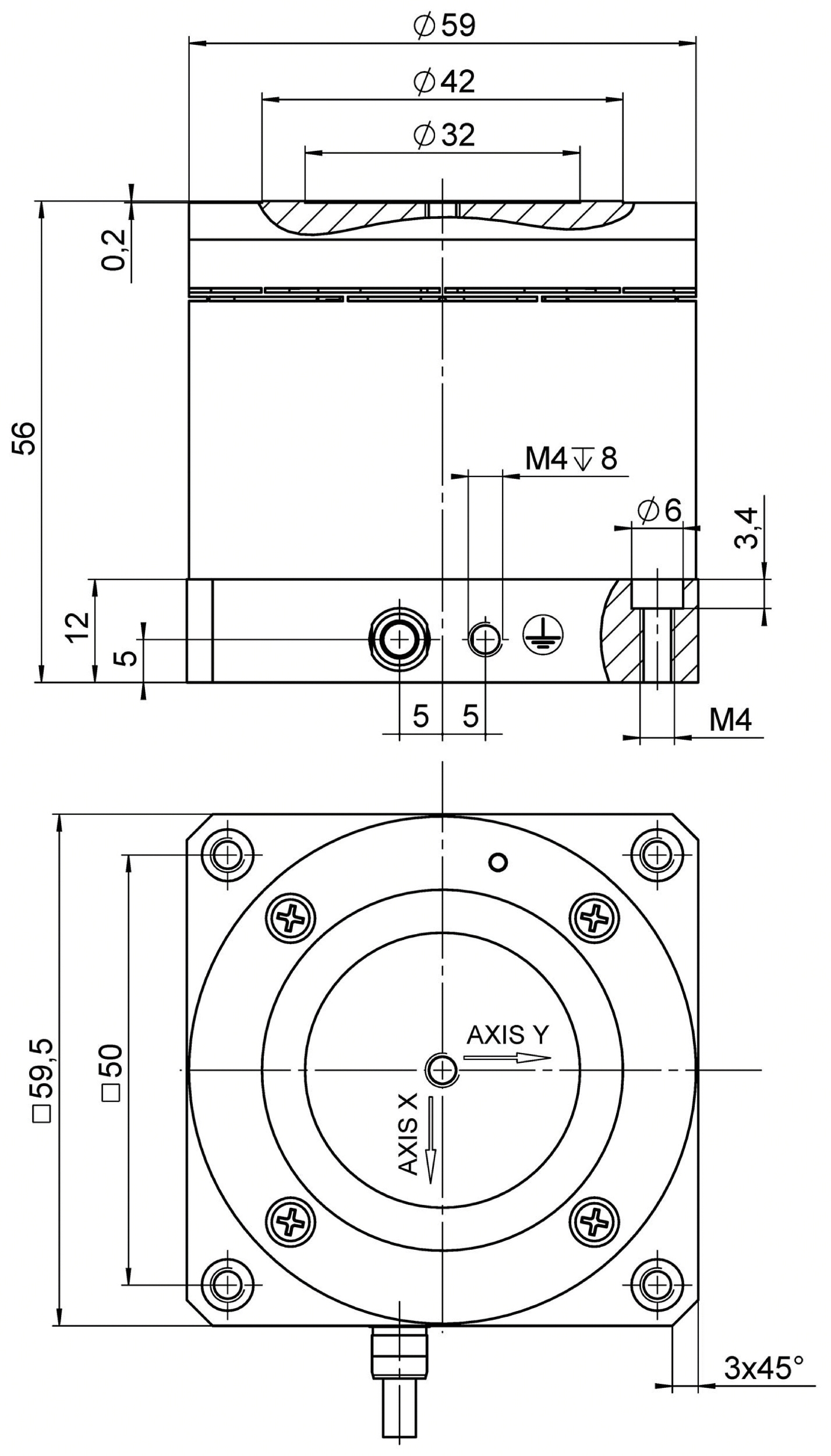

Piezo Tip/Tilt Platform S-340

Long Service Life Thanks to PICMA® Piezoactuators

PICMA® piezoactuators feature all-ceramic insulation that protects them from moisture and malfunctions caused by increased leakage current. Compared to conventional actuators with polymer insulation, they offer up to ten times the service life. Their reliability has been verified over 100 billion operating cycles without failure.

Precise Guidance without Mechanical Play

The flexure guides require no maintenance or lubrication and operate without friction or wear. Thanks to their high rigidity, they have a high load-bearing capacity, are resistant to shocks and vibrations, and can be used over a wide temperature range.

High Dynamics Thanks to Parallel Kinematics

In a parallel-kinematic multi-axis system, all actuators act on a common platform. Low moment of inertia and identical designs of both axes enable fast and dynamic motion while maintaining high precision.

Material Variants for Matching Thermal Expansion

The following combinations are recommended to match the thermal expansion coefficient of the platform and mirror:

• aluminium platform for aluminium mirrors,
• Invar platform for fused silica or Zerodur mirrors.

The S-340 piezoelectric tip/tilt platform is designed for applications requiring fast and precise tilting of larger optical elements in two axes:

• image processing and stabilization,
• optical traps,
• laser scanning and beam steering with a large deflection angle,
• laser tuning,
• control of optical filters and switches,
• precise positioning of optical elements,
• optical and laser beam stabilization.
