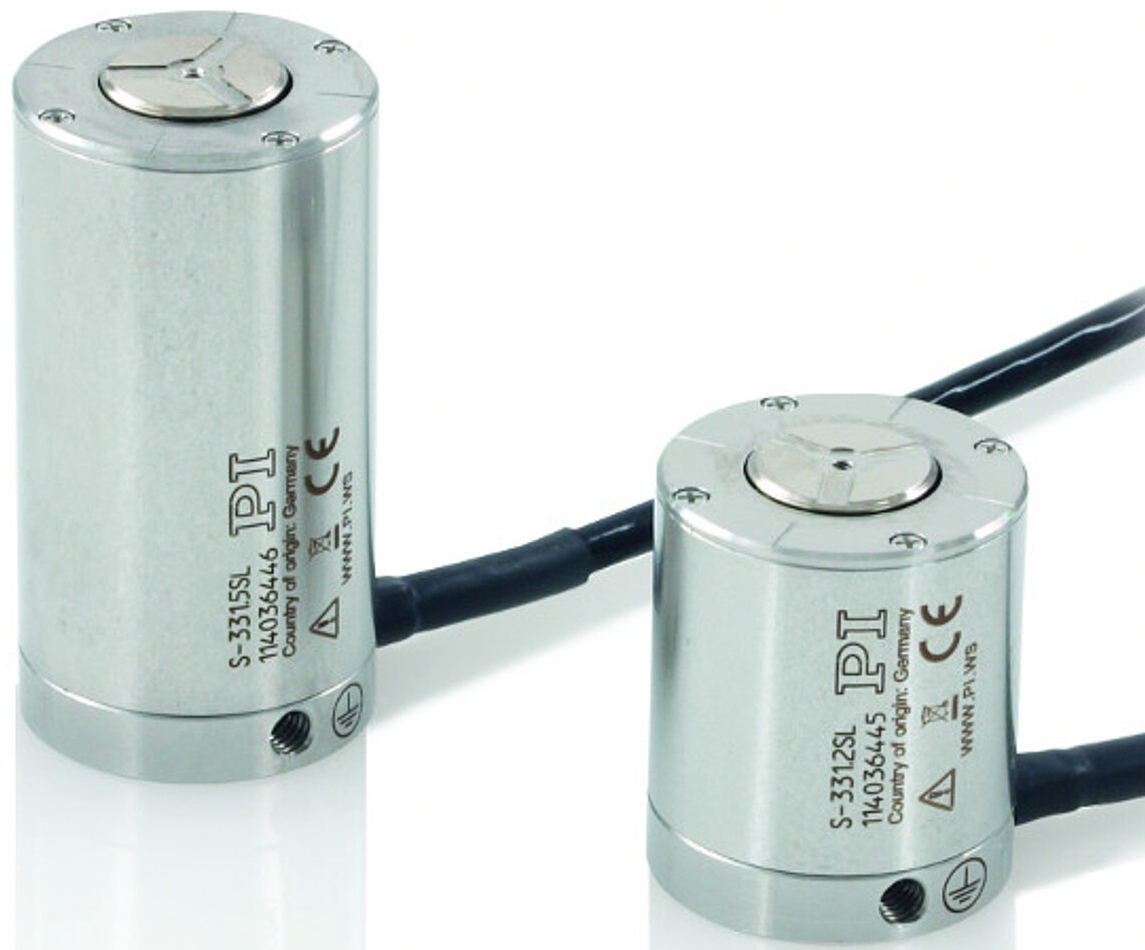

The S-331 is a high-speed piezoelectric tip/tilt platform designed for precise tilting of smaller mirrors in two axes. Thanks to its very fast response and low moment of inertia, it is suitable for dynamic optical beam control, fast scanning and stabilization applications.
Key Features
- Precise tilting of mirrors in two axes θX and θY

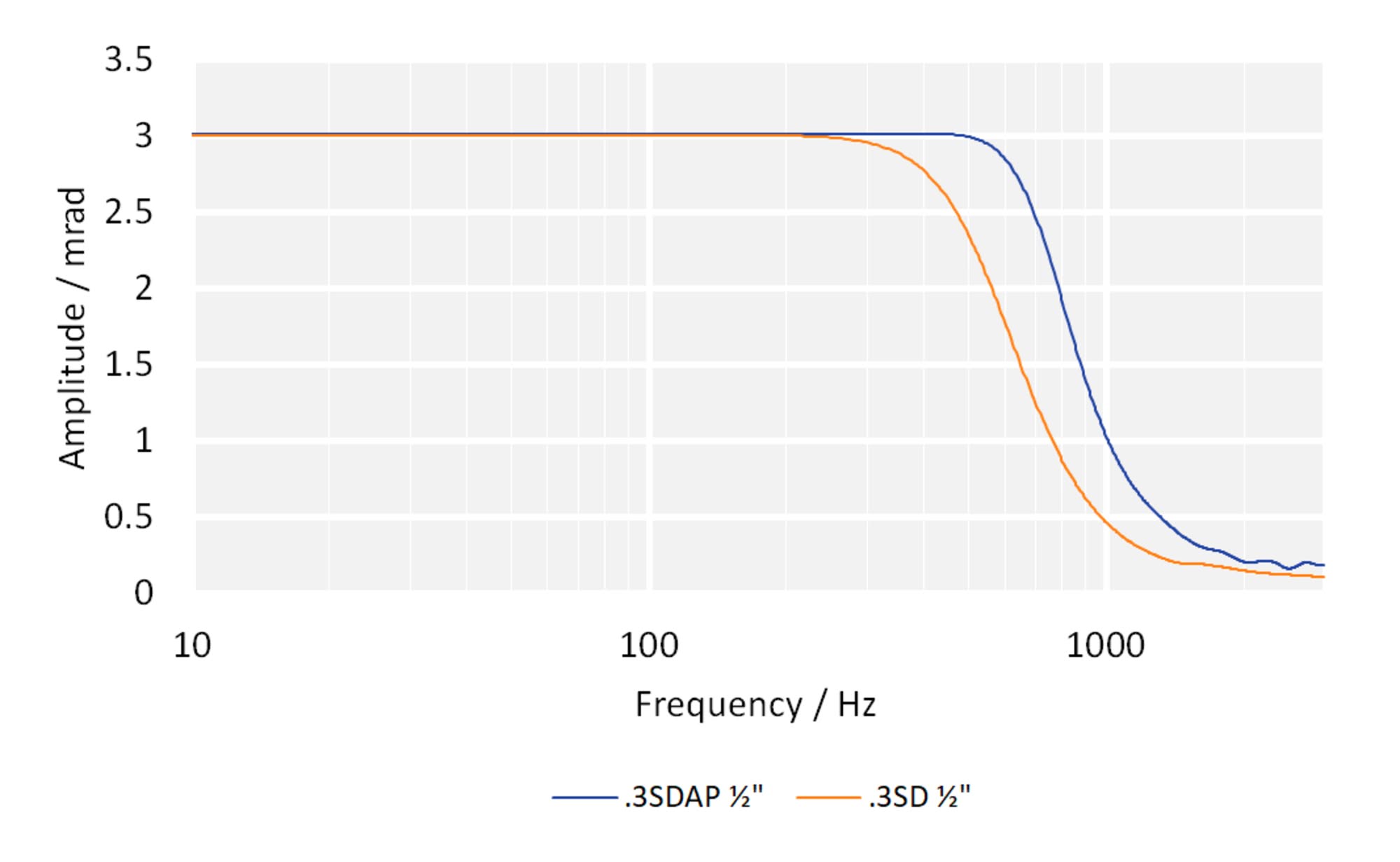

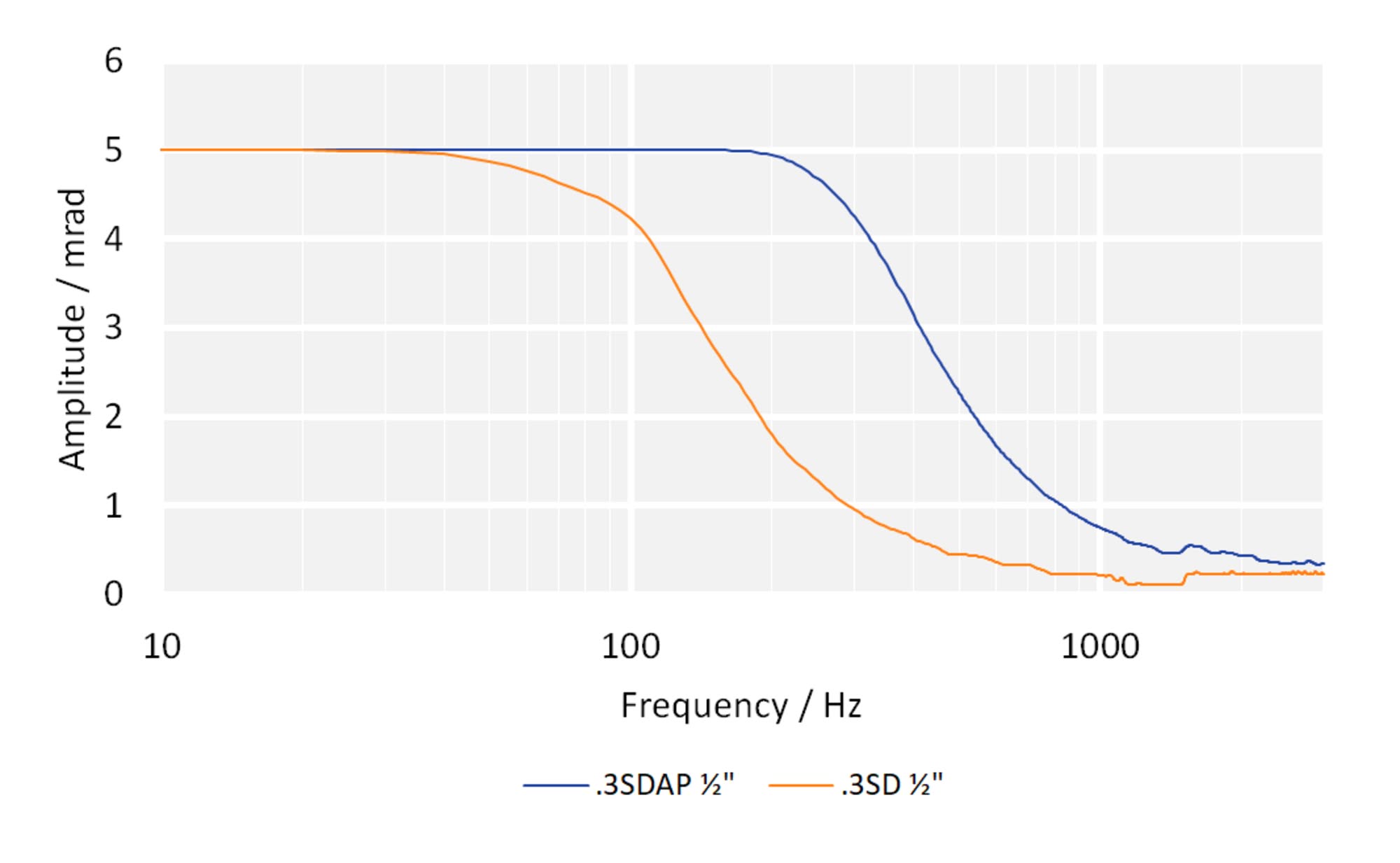

- Tilt angle of 3 or 5 mrad depending on the selected variant
- Optical deflection angle up to 10 mrad (0.57°)
- Resonant frequency up to 10 kHz with a 12.7 mm diameter mirror

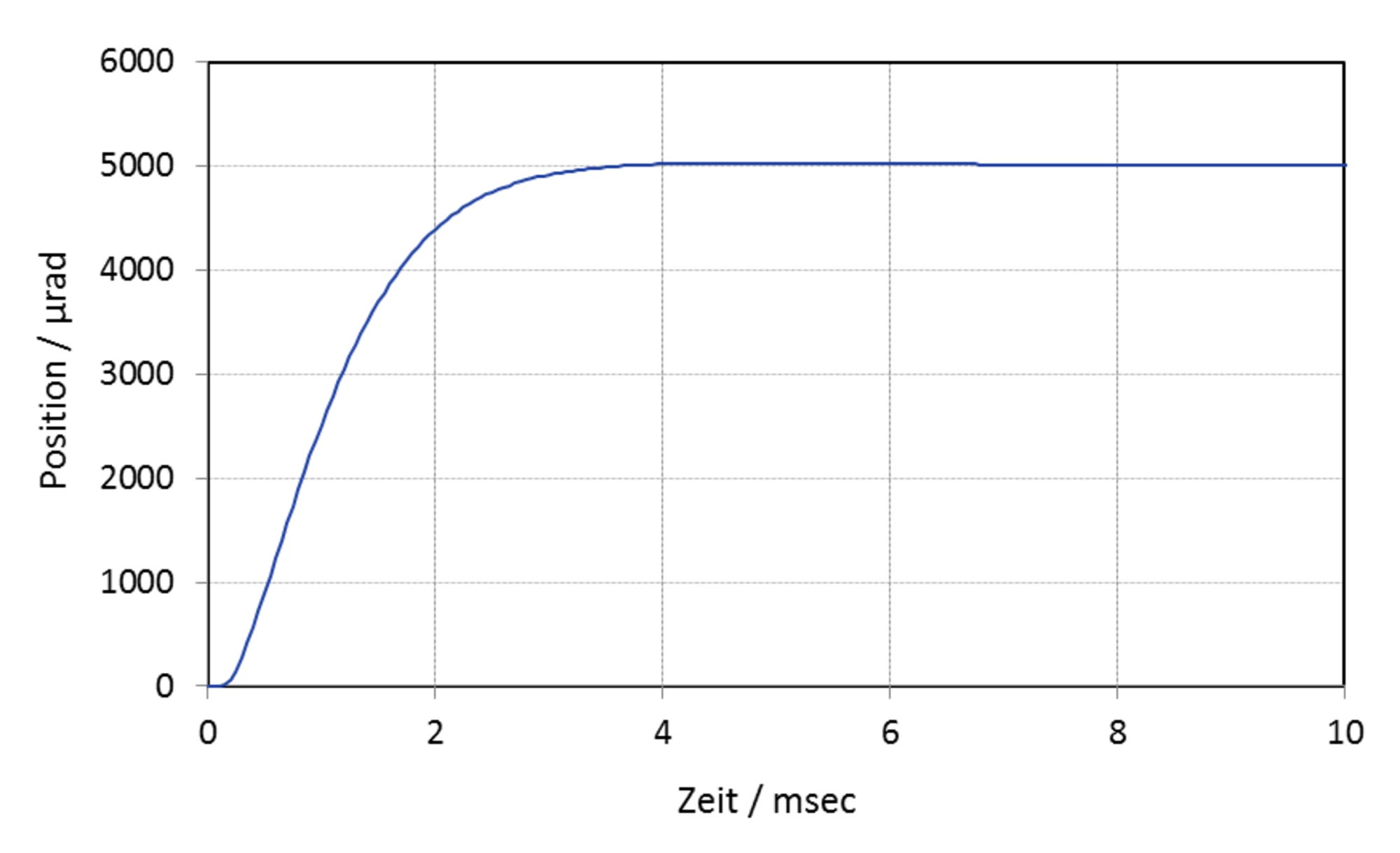

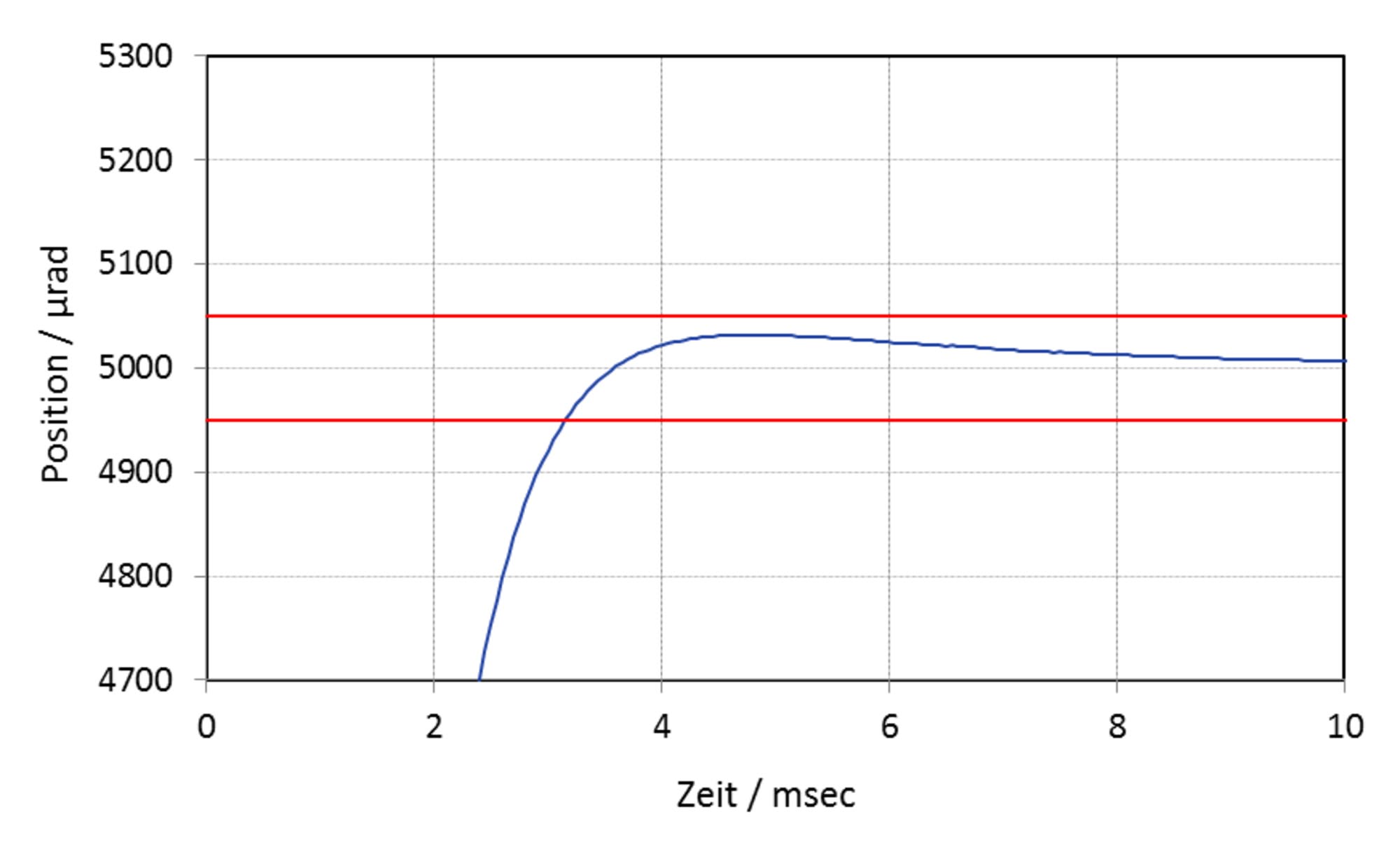

- Short settling time for fast step-and-settle positioning

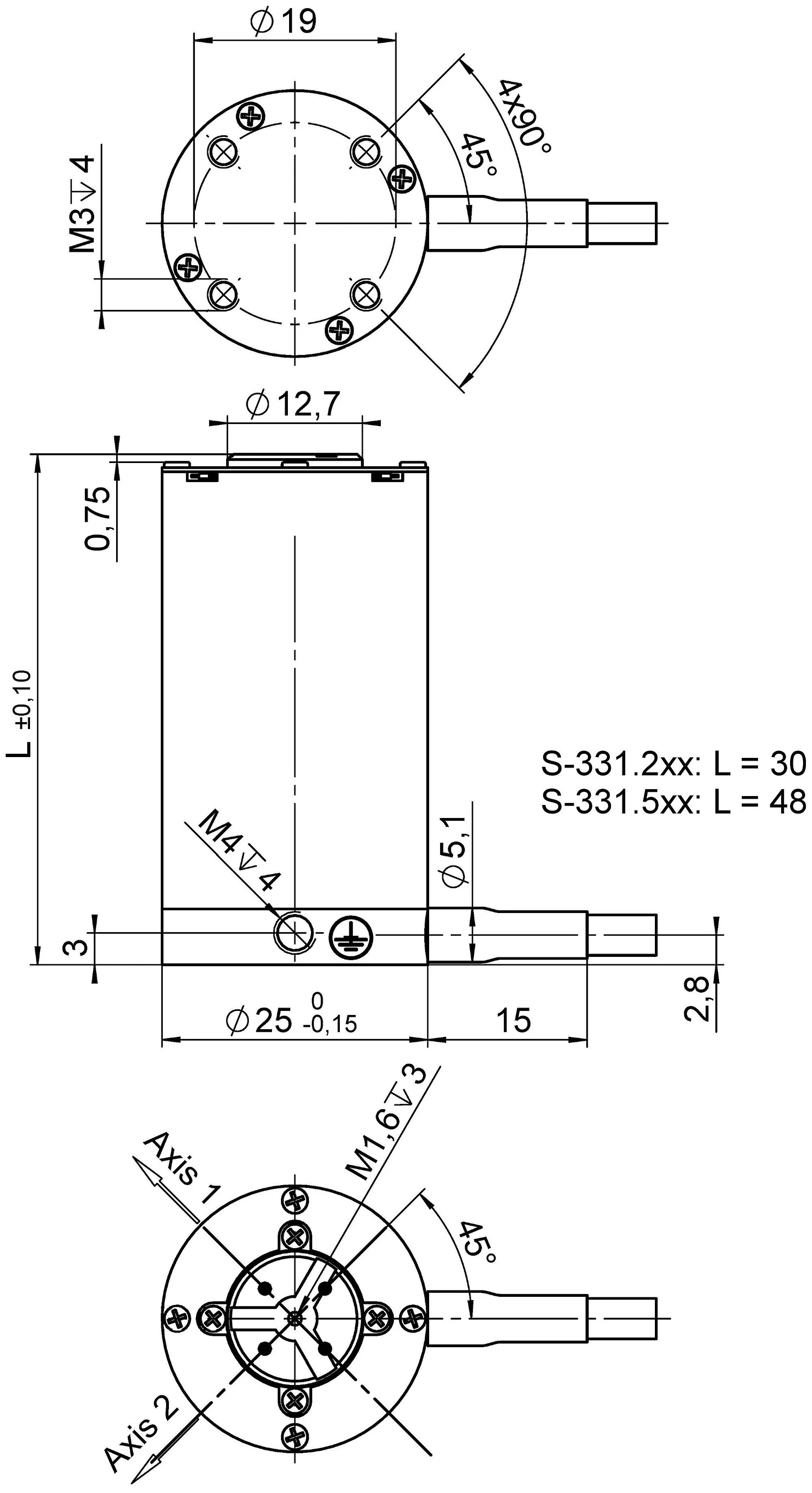

- For mirrors with diameters up to 12.7 mm (0.5")
- Parallel kinematics with identical dynamic properties in both axes
- Integrated SGS strain gauge sensors for position measurement
- Backlash-free, maintenance-free and frictionless flexure guides
- PICMA® piezoactuators with all-ceramic insulation and long service life
