UNIVET Glasses

Laser safety goggles with UL-1022 filter

The UL-1022 dark green filter is a hybrid model offering combined protection: it allows for alignment in the visible red region (630–645 nm, RB3) whilst also providing full, high protection in the infrared band (e.g. 765–1080 nm with D LB6 IR LB8). Its VLT is very low (4 per cent).

Materiál:

Polykarbonát

VLT:

4 %

Barva filtru:

Tmavě zelená

Norma:

EN207, EN208

Pro lasery:

CO2, vláknové & Nd:YAG, diodové IR, Seřizování

Ochrana RB:

RB3

Aplikace:

Svařování | Aditivní výroba (navařování) | Řezání | Seřizování

Description

Frame 546

UNIVET safety glasses 546 are a popular model with a lightweight and dynamic design that ensures high comfort and reliable eye protection. The wraparound shape fits the face perfectly, and the soft rubberised side arms, together with the comfortable nose bridge, minimise pressure on sensitive areas, making them ideal even for prolonged wear.

Key features:

  • Lightweight and breathable construction
  • Wrap-around shape protects the eyes from all sides
  • Rubberised side arms reduce pressure and ensure stability
  • Soft nose bridge ensures comfort during all-day use

The ideal choice for everyday industrial, laboratory and maintenance use.

The pack includes safety goggles, a hard case, a cleaning cloth, a neck strap, a filter certification card and instructions for use.

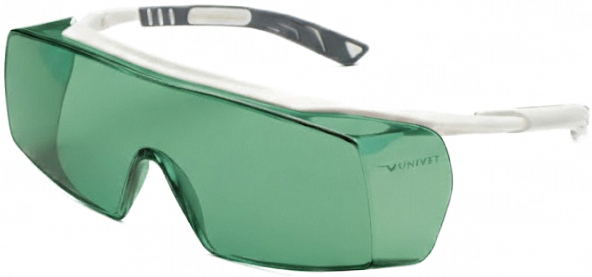

Frame 5X7

UNIVET safety glasses 5X7 offer a practical and cost-effective solution for domestic, hobby and light professional use. Thanks to their wide lenses, they provide an extended field of vision and optimum protection, whilst being fully compatible with prescription glasses. Adjustable temples featuring SoftPad™ technology ensure a comfortable and secure fit that adapts to the shape of the face, even during prolonged use.

Key features:

  • Compatible with prescription glasses
  • Wide lenses for an extended field of vision
  • Adjustable SoftPad™ temples for comfort and stability
  • Ergonomic design for long-term wear

The ideal choice where a combination of value for money and reliable eye protection is important.

The pack includes safety glasses, a hard case, a cleaning cloth, a neck strap, a filter certification card and instructions for use.

Specifications

Wavelength (nm) FROM 546
630–1150 3 DIR LB3
670–1135 4 DIR LB4
680-1125 5 DIR LB5
685–725 6 DIR LB6
750–1115 6 DIR LB6
765–1100 7 D LB6 IRM LB7
Wavelength (nm) OD 5X7
630–645 3 1 W 2E-4J 630–645 RB3
630–645 3 DIR LB3
645–655 2 DIR LB2
655–1150 3 DIR LB3
670–1135 4 DIR LB4
680-1125 5 DIR LB5 M LB5Y
690–1115 6 DIR LB6 M LB6Y
755-1100 7 D LB6 IR LB7 M LB7Y
765–1080 8 D LB6 IR LB8 M LB7Y
9,000–11,000 6 DI LB3

Catalogue numbers

Barva rámečku
Rámeček
 Bílá
5X7 5X7L.00.00.659

Documents

Datový list

Download View
