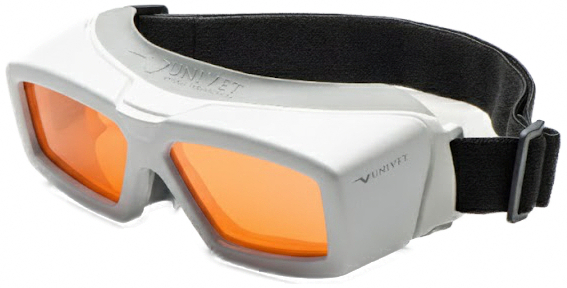

Laser safety goggles with UL-3004 filter

The dark orange UL-3004 filter is a versatile shield for the most demanding combined applications. It provides extreme protection (up to LB9) simultaneously against UV radiation, green lasers (515–532 nm) and infrared lasers (1025–1100 nm). It also provides protection against the 2940 nm wavelength (DI LB4). Its transmittance is 18 % VLT.

Materiál:

Sklo + Vrstva (potažené sklo)

VLT:

18 %

Barva filtru:

Tmavě oranžová

Norma:

EN207

Pro lasery:

CO2, vláknové & Nd:YAG, zelené, modré & fialové, UV & Excimer

Aplikace:

Svařování | Aditivní výroba (navařování) | Řezání | Výzkum & Laboratoř | Ablace

Description

Frame 559

UNIVET safety glasses 559 represent the pinnacle of personal eye protection when working with high-powered lasers. The robust 2 mm aluminium frame guarantees exceptional durability and safety, whilst the soft rubber inner lining enhances comfort even during prolonged wear. The adjustable elastic strap keeps the goggles securely in place in all working conditions. Thanks to the Over-The-Glass (OTG) design, the goggles can be worn comfortably over prescription glasses, making them a versatile solution for a wide range of operators.

Key features:

  • Durable aluminium frame (2 mm) for maximum protection
  • Designed for high-power lasers
  • Soft rubber inner lining for comfort and a snug fit
  • Adjustable elastic strap for stability whilst working
  • Compatible with prescription glasses (OTG)

Ideal for industrial, research and laboratory applications involving high-power laser systems.

The pack includes safety goggles, a hard case, a cleaning cloth, a neck strap, a filter certification card and instructions for use.

Specifications

Wavelength (nm) FROM 559G
180–315 9 D LB9 IR LB5
315–515 7 D LB6 IR LB7 M LB7Y
515–532 9 D LB8 IR LB9 M LB9Y
1025–1100 9 D LB8 IR LB9 M LB9Y
2940 4 DI LB4

Catalogue numbers

Barva rámečku
Rámeček
 Bílá
559 559G.00.00.103

Documents

Datový list

Download View
