Custom Cleanroom Cell

We offer comprehensive solutions for creating local cleanroom spaces at your workplace. We combine cutting-edge laminar flow technology of flow modules from our supplier Spetec with variable cleanroom cell construction - fast, effective, and precisely according to your needs.

Send inquiry

Key Features

Certified cleanliness

Guaranteed ISO 5 cleanliness class for dust particles (according to DIN EN ISO 14644-1) in the space below the flow module.

Accessibility

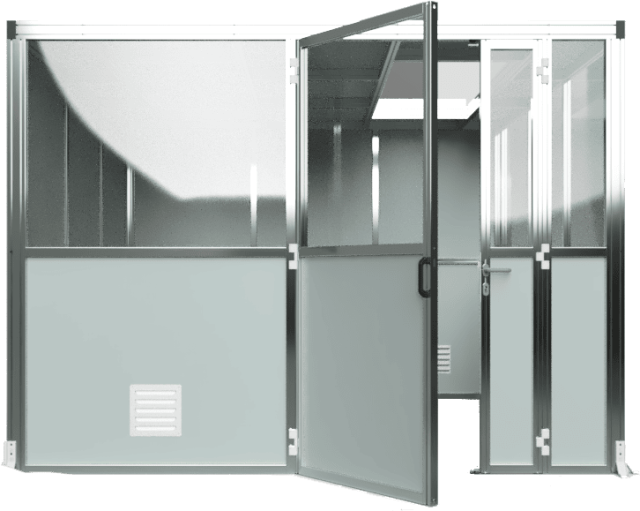

Single- or double-leaf doors of variable size chosen by you ensure easy access and entry for larger industrial machines or pallets with material.

Ventilation grilles

Installed grilles ensuring proper air exhaust and preventing overpressure.

Laminar flow

Standard flow velocity of 0.45 m/s with regulation capability.

Customization

At the Custom Systems Department at OptiXs, we have extensive experience in designing bespoke solutions; therefore, adapting the cleanroom cell to your workspace is no problem for us.

Custom dimensions

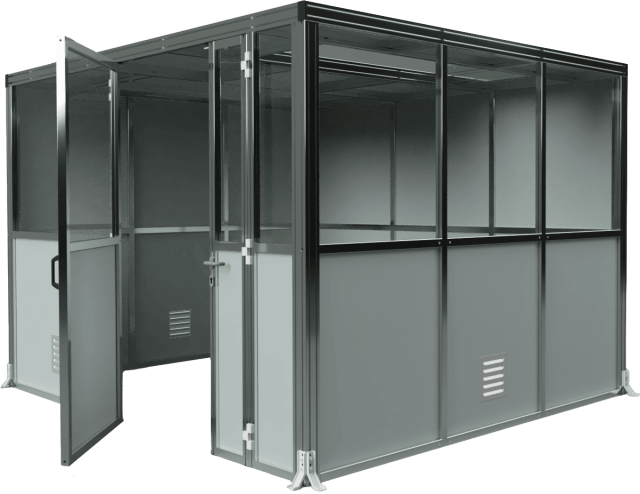

From small tabletop boxes to large cells (e.g. 3x3 m and more), possible choice between single- and double-leaf doors, etc.

Air recirculation and air conditioning

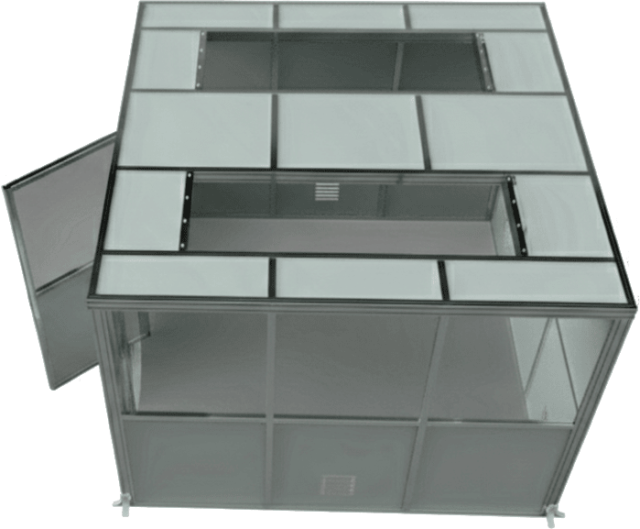

For better flow optimization and temperature control, we offer a version with a double ceiling or recirculation chamber for air return – this version also allows air conditioning installation.

Lighting

Integrated modular lighting

Wall material

Flowbox workspace covered either by PVC strips or solid walls (transparent polycarbonate, alubond, or painted sheets).

Product Description

Custom cells and boxes are ideal for assembly or inspection of components where it is necessary to prevent the presence of dust particles, typically assembly of optoelectronic devices. According to your requirements and needs, we will design, manufacture, and install the entire cleanroom cell, including your requested accessories. We leave the size to you, however, we can offer consultation when choosing the correct dimensions and necessary elements ensuring cleanliness.

SuSi Flow Modules

We install laminar flow modules (flow modules) from our supplier Spetec into the cells, enabling an easy and economically efficient way to equip the workplace with cleanroom conditions.

The basic principles of the module are simple. Air around the module is drawn in using a radial fan through cleaning filters and then driven down in parallel streamlines. Dust particles that are not captured by the intake filters are carried away by the air flow and driven out of the space.

The cleanroom class in the space below the flow module is 100 according to US Fed. 209E, or ISO 5 according to DIN ISO 14644-1 and better.
H14 particle filter: based on Most Penetrating Particle Size (MPPS), captures 99.995% of particles > 0.12 μm and captures 99.9995% of particles > 0.3 μm
Easy replacement of main filters.
Filter malfunction indication based on filter resistance measurement.

We offer flow modules in several size variants in the table below. It is also possible to add an optional external control panel on a 5-meter cable.

SuSi Flow Module

Applications

Optics and laser technology
Assembly and cleaning of lenses and optical sensors.
Microelectronics
Manufacture and service of semiconductors and printed circuit boards.
Pharmacy and medical technology
Packaging of sterile instruments and sample preparation (environment meeting requirements for medical production).
Laboratories
Local cleanroom spaces for analytical instruments.
Engineering
Assembly of precision mechanical components (e.g. bearings, micro-motors).
